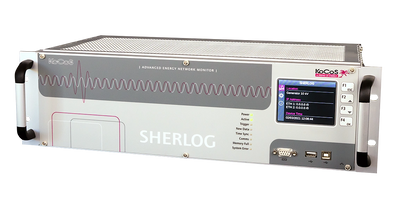

Configurable fault recorder and power quality monitor
Thanks to the modular, scalable device concept, SHERLOG CRX can be equipped as needed and easily adapted or expanded to meet new requirements. Despite its compact dimensions, SHERLOG CRX can be equipped with up to 32 analogue inputs for AC and DC measurements and with up to 128 binary inputs.
For monitoring extensive systems, individual units can be networked via an interlink interface.
Plug & Play-Technology
Extensions and configuration changes can be carried out easily and quickly due to the plug & play technology. Even the replacement of the analogue measuring modules is possible without time-consuming and cost-intensive adjustment, as the calibration data is stored on the modules.
Equipment features:
- Number of analogue inputs: 8 to 32
- Number of binary inputs: 0 to 128
Slots to accommodate:
- Second power supply unit for redundant power supply
- Interface module for redundant data communication and fiber optic connection
- Synchronization module for precise time synchronization to all common standards
